Article image 2CPX041277R9999

ABB 2CPX041277R9999

MS327

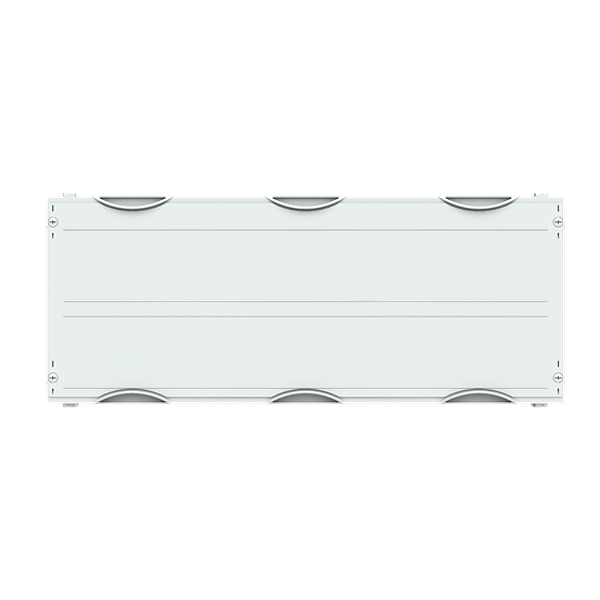

MS327 Busbar Module 630A

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system horizontal, Ratchet unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, unequipped for the installation of , for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX151, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 215 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617412779
Weight: 2.80 kg
Length: 0.30 m
Width: 0.75 m
Height: 0.225 m
