2CPX041274R9999
MS324

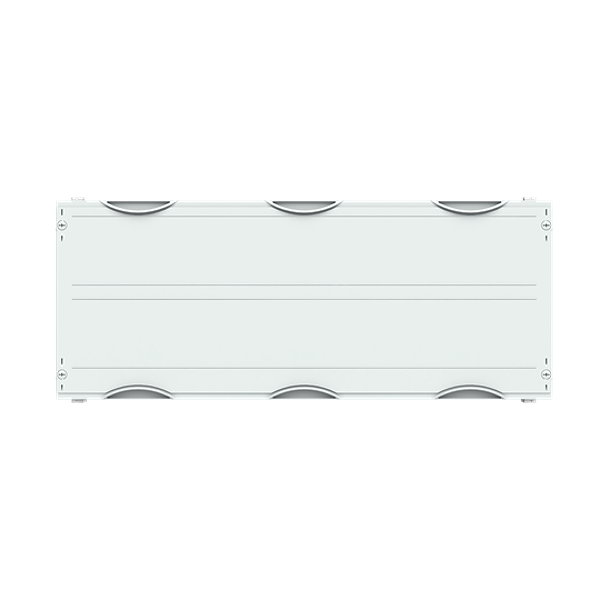

MS324 Busbar Module 360A
Interior fitting module, CombiLine, mounted in cabinet, for Busbar system horizontal, Ratchet unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, unequipped for the installation of , for busbar system 5-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, for maximum 5 Cu busbars, (busbars must be ordered separately), rated current maximum 360 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 225 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617412748 |
Weight: | 2.81 kg |
Length: | 0.30 m |
Width: | 0.75 m |
Height: | 0.225 m |
