2CPX041254R9999
MM115

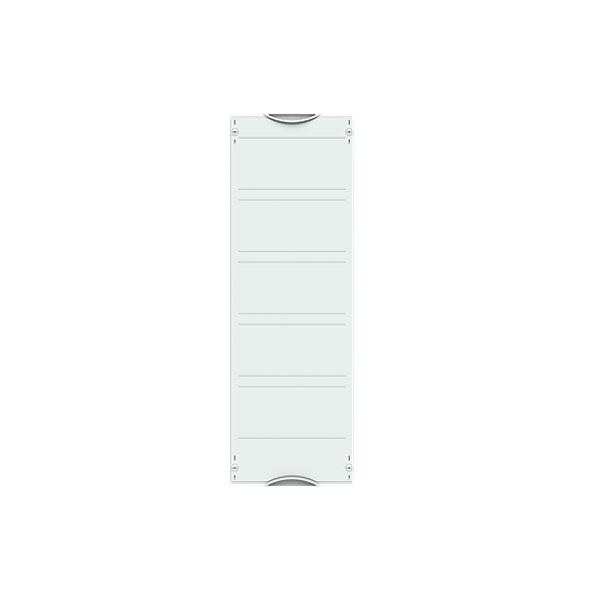

MM115 Mounting Plate Module
Interior fitting module, CombiLine, mounted in cabinet, for Mounting plate, Ratchet unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 188 mm, usuable height of 716 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617412540 |
Weight: | 3.07 kg |
Length: | 0.75 m |
Width: | 0.25 m |
Height: | 0.20 m |
