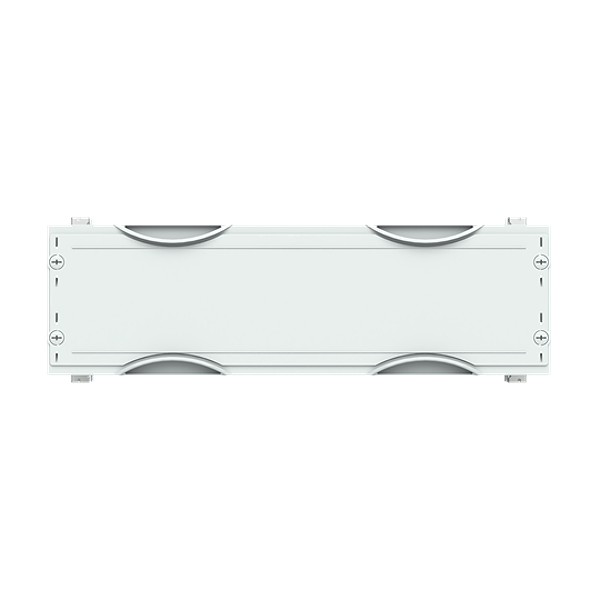

Article image 2CPX041228R9999

ABB 2CPX041228R9999

MK206

MK206 Terminal Block Module

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting module, CombiLine, mounted in cabinet, for DIN rail for terminals horizontal, Ratchet unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, Stepless adjustable via mounting bracket, usuable depth of 68 mm up to 115 mm, usuable width of 438 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617412281
Weight: 0.87 kg
Length: 0.15 m
Width: 0.50 m
Height: 0.20 m
