2CPX038160R9999
KF140SB
KF140SB M-Curr.Tranf.-Plate

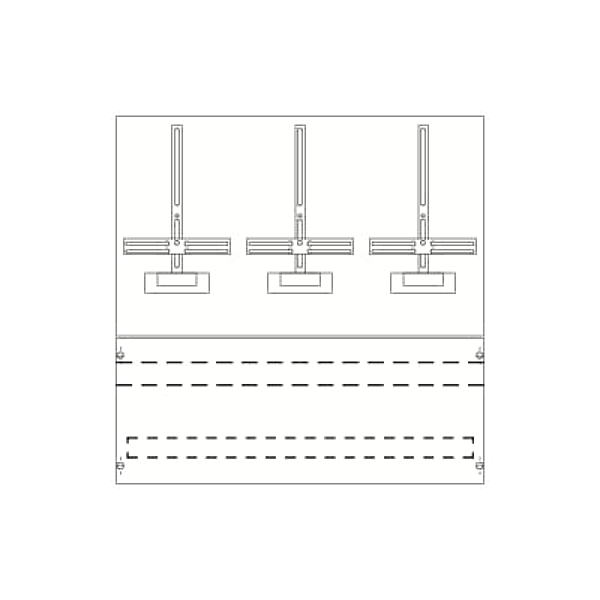

Metering exchange board, meter panel, with Metering cross, for the internal use, dimensions in mm (H x W x D): 750 x 750 x 175, Number of reserve spaces 3, Number of transformer meter spaces 1, Note: Assembly and wiring on site, additional perhaps metering transformer terminals and wiring for current and voltage path connection to ordered, Provision of meteringboard to be defined with DSO, Ratchet unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617381600 |
Weight: | 10.00 kg |
Length: | 0.86 m |
Width: | 0.75 m |
Height: | 0.233 m |
