ABB 2CPX037824R9999

ED91KA

ED91KA Combin. Set 1F.Terminal Mo

Description

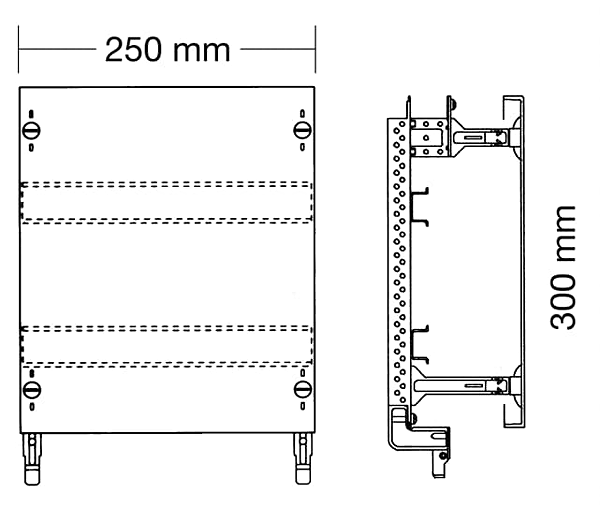

Interior fitting system, Combi-Sets, mounted on EDF-Profile, for DIN rail for terminals horizontal, Ratchet unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 7,5 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
