ABB 2CPX037820R9999

ED61MA

ED61MA Combin. Set 1F.Mounting Pl

Description

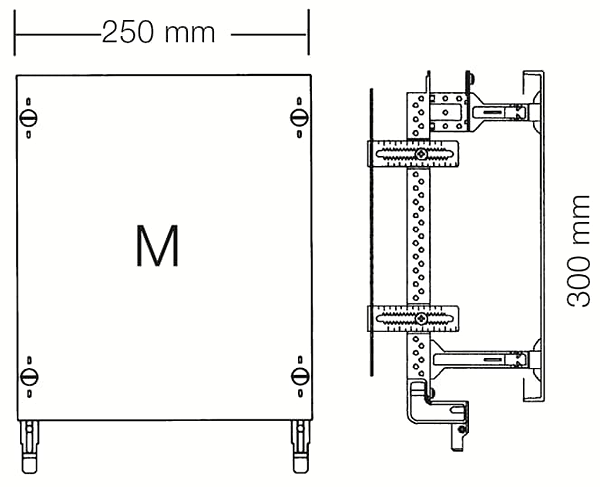

Interior fitting system, Combi-Sets, mounted on EDF-Profile, for Mounting plate, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
