ABB 2CPX037812R9999

ED71SA

ED71SA Combination Set 1F.Busbar

Description

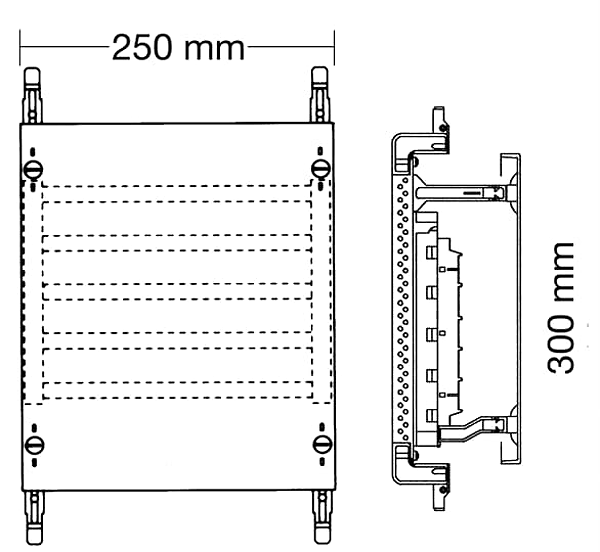

Interior fitting system, Combi-Sets, mounted on EDF-Profile, for busbars, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, with busbar system 5-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, with 5 Cu busbars, rated current maximum 360 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
