ABB 2CPX037801R9999

ED11EA

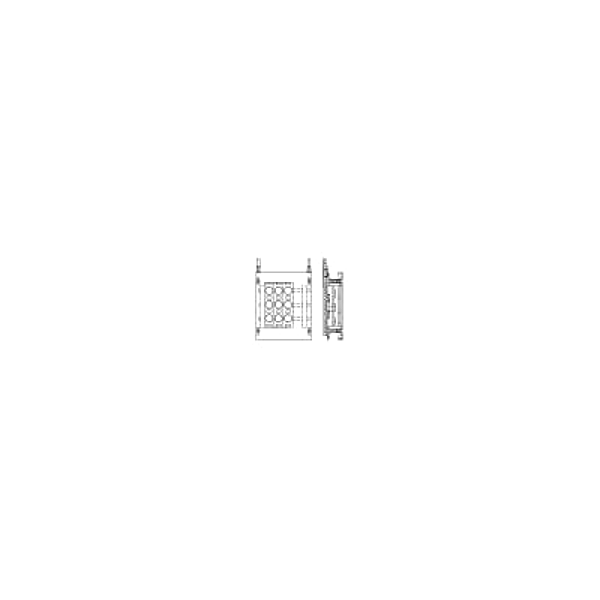

ED11EA Combination Sets D0 Fuse

Description

Interior fitting system, Combi-Sets, mounted on EDF-Profile, for Busbar system mit Betriebsmittel, Ratchet unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 3 Mounting fuse socket E27, Equipment manufacturer: ABB, ZE61, with busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 60 mm, with 3 Cu busbars, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
