Article image 2CPX037632R9999

ABB 2CPX037632R9999

1B2A

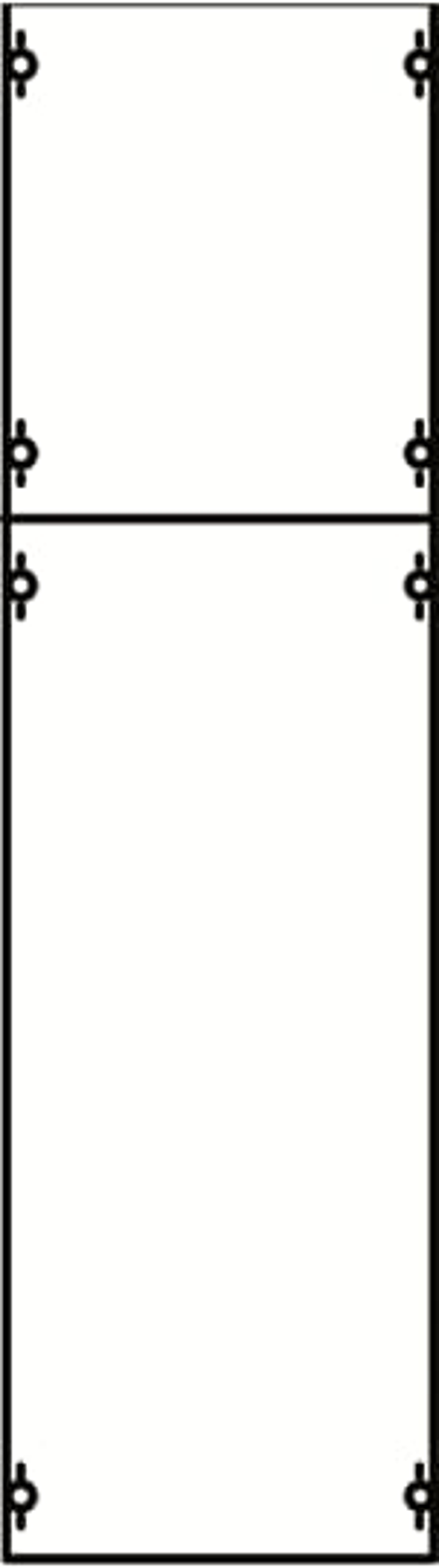

1B2A Distribution Board 1PW

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Interior fitting system, Distribution panels, mounted on EDF-Profile, for touch guard, Ratchet unit 6 GU = 900 mm, panel width 1 = 250 mm, 72 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617376323
Weight: 2.79 kg
Length: 0.90 m
Width: 0.25 m
Height: 0.051 m
