ABB 2CPX037020R9999

KS1020SB

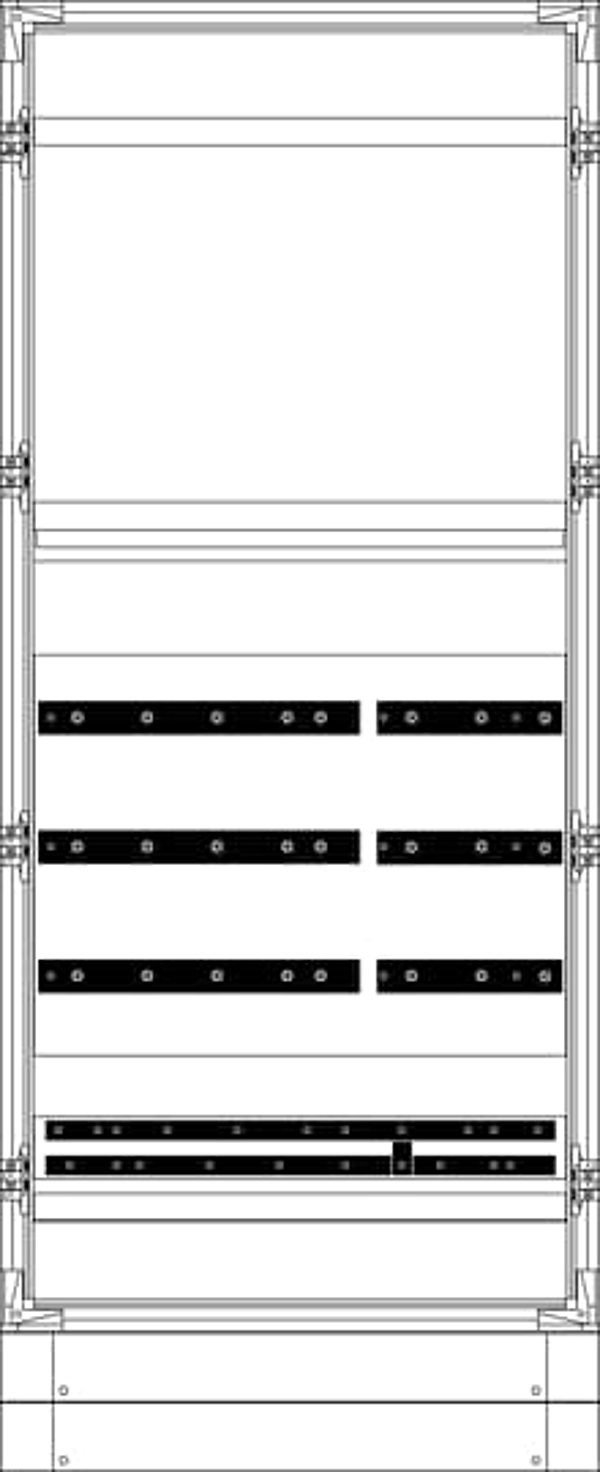

KS1020SB M+CT-Cabinet 3/8R4 570

Description

Measurement and metering transformer cabinet, series TriLine, fully assembled cabinet, for the internal use, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, rated current 570 A, powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 2113 x 874 x 425, Earthing system TN-C-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate Provision from DSO, busbar system Cu busbars 50 x 10 mm 5-pole, Note: Please order requested customer NH-fuse disconnectors at EWE Netz Oldenburg, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 504, covers out of Plastic, Quick sealable connection, RAL 7035
