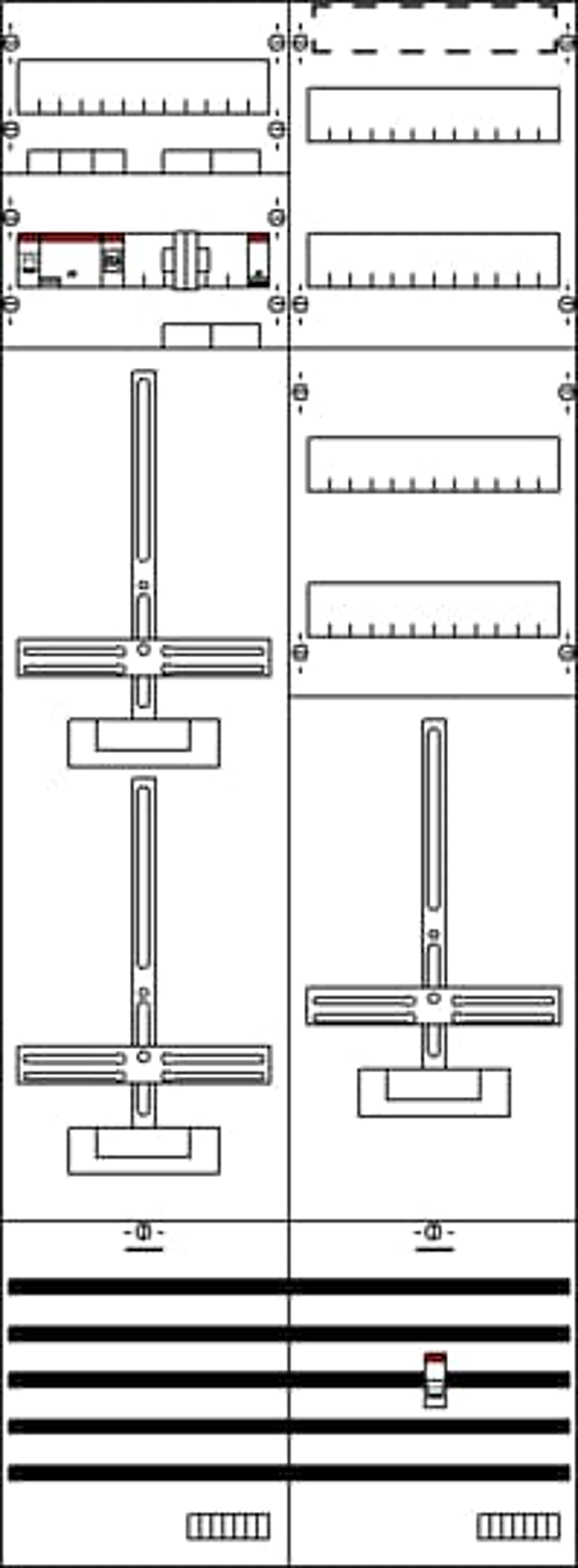

Article image 2CPX036986R9999

ABB 2CPX036986R9999

KA528

KA528 Meter Board Compl. 9R

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, rated current 63 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, net side compartment, SG space: with busbar, system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 2, Number of SG spaces 1, Number of distributor rows 2, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617369868
Weight: 15.43 kg
Length: 1.36 m
Width: 0.50 m
Height: 0.14 m
