ABB 2CPX036804R9999

KS834

KS834 M+CT-Cabinet

Description

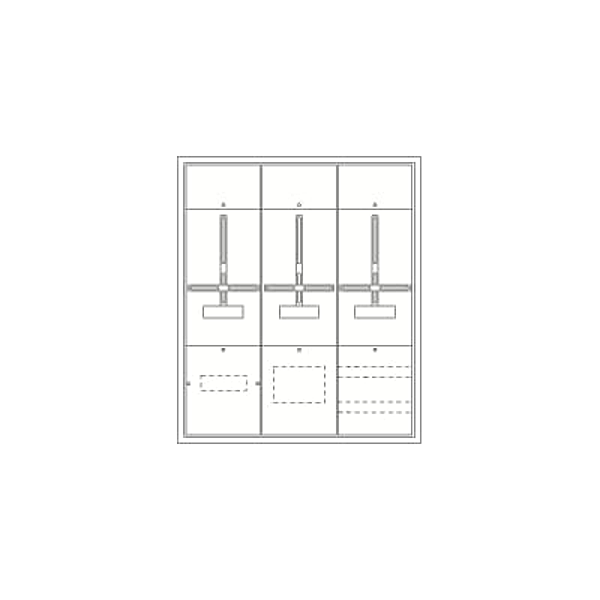

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 950 x 800 x 215, not pre-wired, Number of SG spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, parting point before the current transformer DIN rail for SH-switch ABB S700 3 x 1-polig, Note: Wiring set on site, Ratchet unit 6 GU, Overall height 2, panel width 3, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
