Article image 2CPX036691R9999

ABB 2CPX036691R9999

KA3277

KA3277 Meter Board Compl. 7R

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

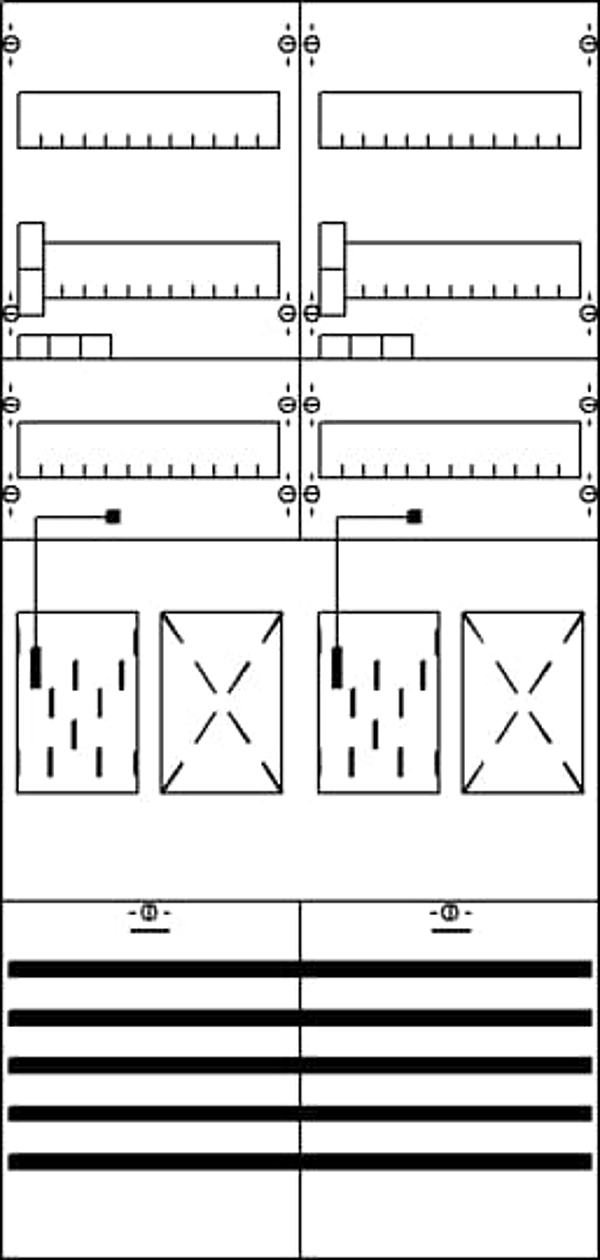

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with BKE-I, rated current 63 A, dimensions in mm (H x W x D): 1050 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, incl. Data sensor 500 mm, net side compartment, meter space: with busbar, pre-assembled for main switch SH, net side compartment, SG space: with busbar, system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 2, Number of reserve spaces 2, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617366911
Weight: 12.94 kg
Length: 1.06 m
Width: 0.50 m
Height: 0.14 m
