2CPX035953R9999
KS259Z

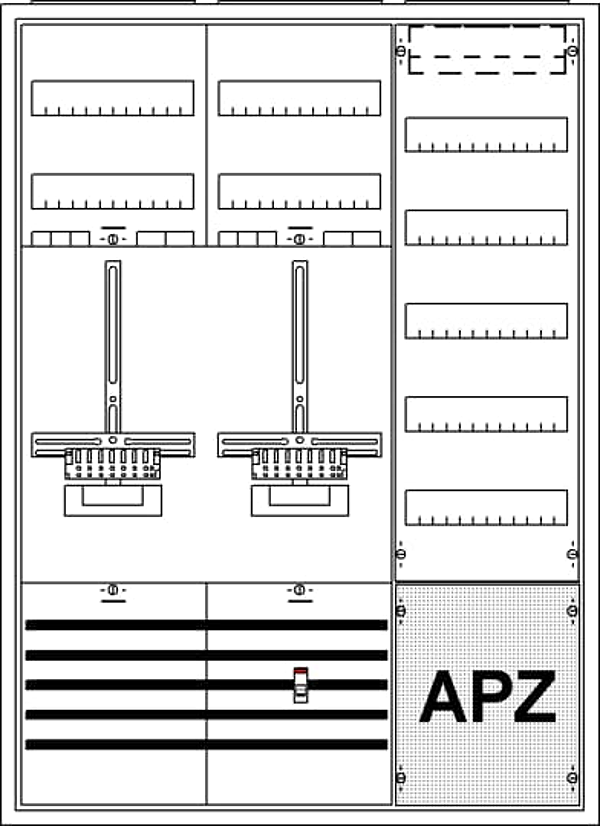

KS259Z Meter Cabinet Compl. A37
Meter board, series A, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, IK code 07, rated current 63 A, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, with Standard closure, door opening angle 130 degree, door hinge right and left, rear wall out of Plastic, cable entry on top via membrane flange mounted, on bottom via nippel flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 800 x 215, Metering module pre-wired, Types of networks TN-S 5-pole, Quick terminal for metering, lower connection compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 35 mm², upper connection compartment, meter space: with Main branch terminal, Number of meter spaces 2, Number of distributor rows 5, Ratchet unit 7 GU, Overall height 3, panel width 4, Space units 252, covers out of Plastic, 90 degree press and turn closure, RAL 7035
ECCN: | |
Country of Origin: | |
EAN: | 4011617359531 |
Weight: | 37.09 kg |
Length: | 0.233 m |
Width: | 0.80 m |
Height: | 1.16 m |
