Article image 2CPX035899R9999

ABB 2CPX035899R9999

KS3267Z

KS3267Z Meter Cabinet Compl. A37

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

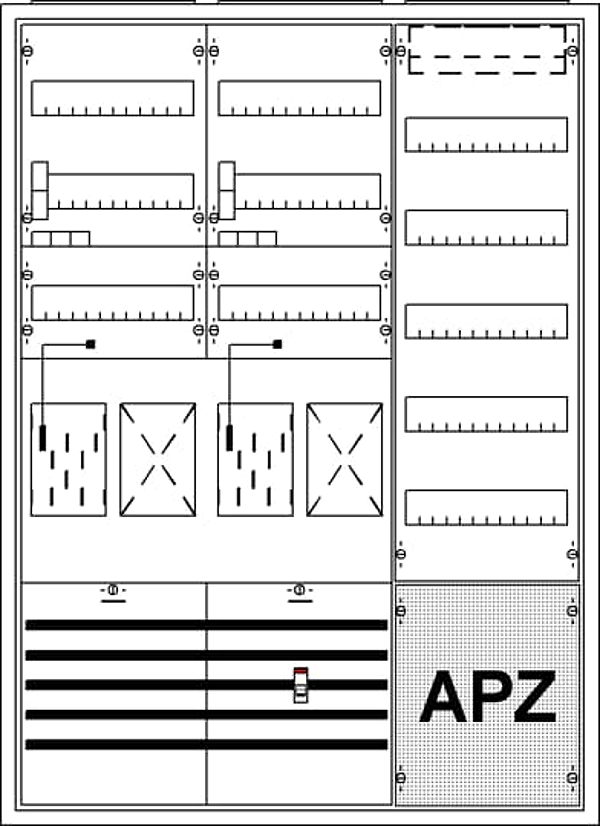

Meter board, series ComfortLine A, fully assembled cabinet, with BKE-I, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, IK code 07, rated current 63 A, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right and left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, incl. Data sensor 500 mm, net side compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 35 mm², system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 2, Number of reserve spaces 2, Number of distributor rows 5, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617358992
Weight: 38.71 kg
Length: 0.233 m
Width: 0.80 m
Height: 1.16 m
