Article image 2CPX035834R9999

ABB 2CPX035834R9999

KS307

KS307 Meter Cabinet Compl. A17

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

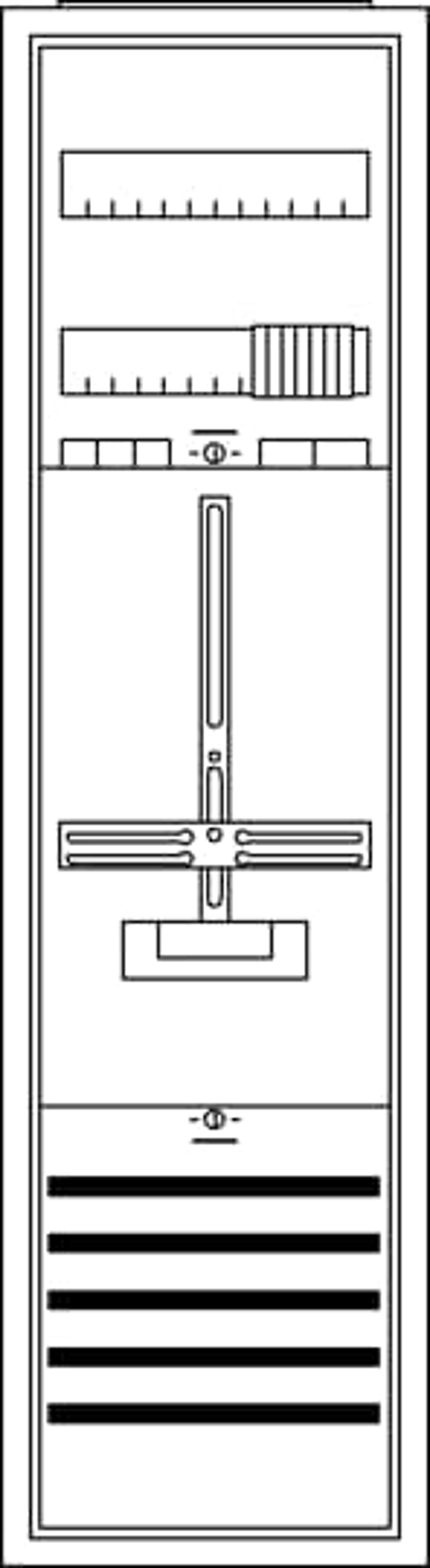

Meter board, series ComfortLine A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, IK code 07, rated current 63 A, powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right or left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 1x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 300 x 215, Metering module pre-wired, Earthing system TN-S, also suitable for TT-System, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 35 mm², system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 1, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617358343
Weight: 18.01 kg
Length: 0.233 m
Width: 0.30 m
Height: 1.16 m
