Article image 2CPX035742R9999

ABB 2CPX035742R9999

KA214

KA214 Meter Board Compl. 7R

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

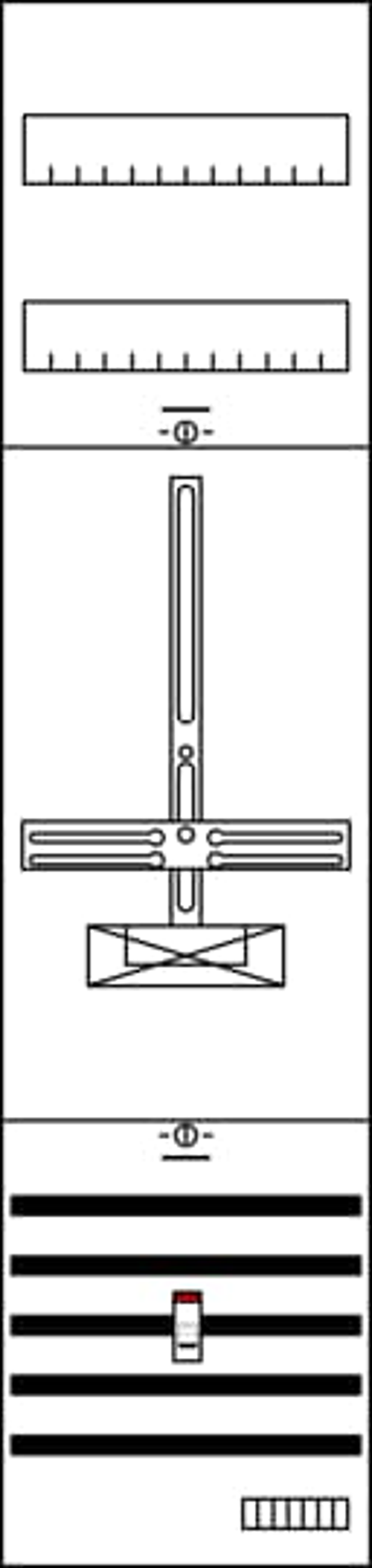

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, rated current 63 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Metering module pre-wired, Earthing system TN-S, also suitable for TT-System, 5-pole, net side compartment, meter space: with busbar, Terminal for control wiring 7-pole quick connection, net side compartment, SG space: with busbar, Number of SG spaces 1, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617357421
Weight: 5.06 kg
Length: 1.06 m
Width: 0.25 m
Height: 0.14 m
