2CPX035716R9999
KA4094
KA4094 Transformerboard OH5

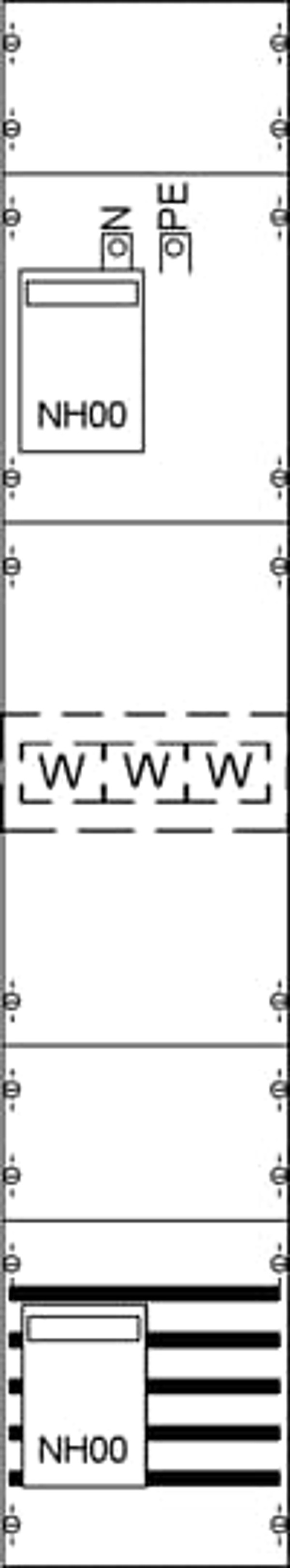

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 125 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer 1 Fuse switch disconnector NH00/160 A (M8), primary wiring 50 qmm, Connection N+PE (M8), Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617357162 |
Weight: | 13.53 kg |
Length: | 1.36 m |
Width: | 0.25 m |
Height: | 0.14 m |
