ABB 2CPX035709R9999

KA4084

KA4084 Transformerboard OH3

Description

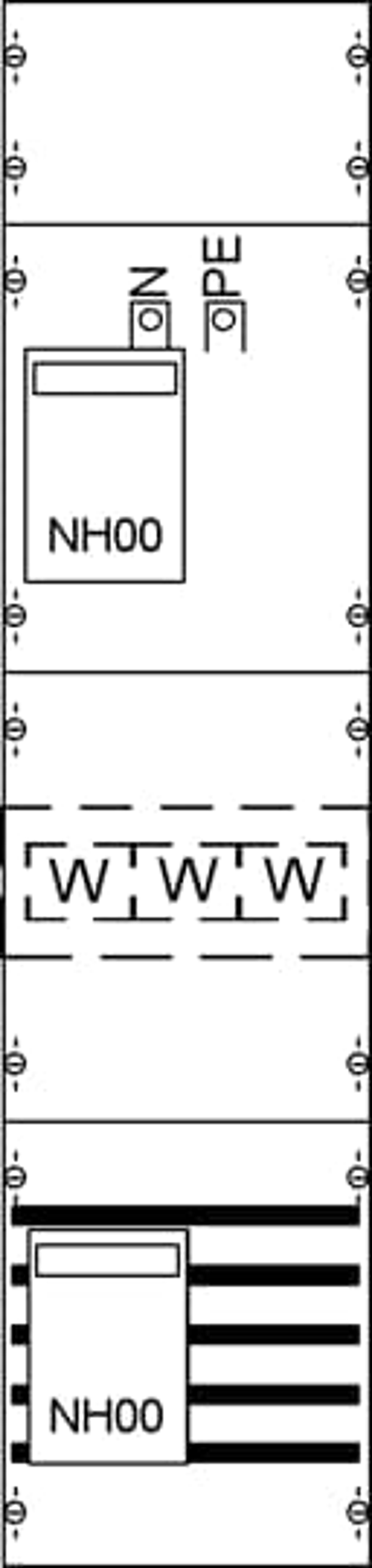

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 125 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer 1 Fuse switch disconnector NH00/160 A (M8), primary wiring 50 qmm, Connection N+PE (M8), Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
