Article image 2CPX035657R9999

ABB 2CPX035657R9999

KA2413

KA2413 Meter Board Compl. 7R

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

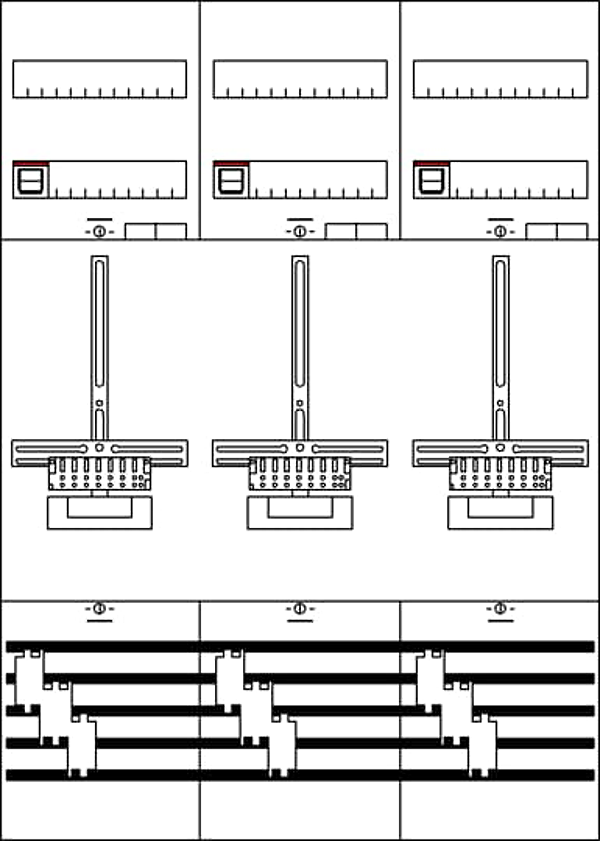

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, rated current 63 A, dimensions in mm (H x W x D): 1050 x 750 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, with metering quick termin and sealable cover, net side compartment, meter space: with busbar, with NH00-single fuse protection, net side compartment, SG space: with busbar, system side compartment, meter space: Switch 63 A/3-pole lockable and main branch terminal, Number of meter spaces single tariff 3, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617356578
Weight: 18.04 kg
Length: 1.06 m
Width: 0.75 m
Height: 0.14 m
