Article image 2CPX035130R9999

ABB 2CPX035130R9999

KA4229

KA4229 CT Complete Meter Board

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

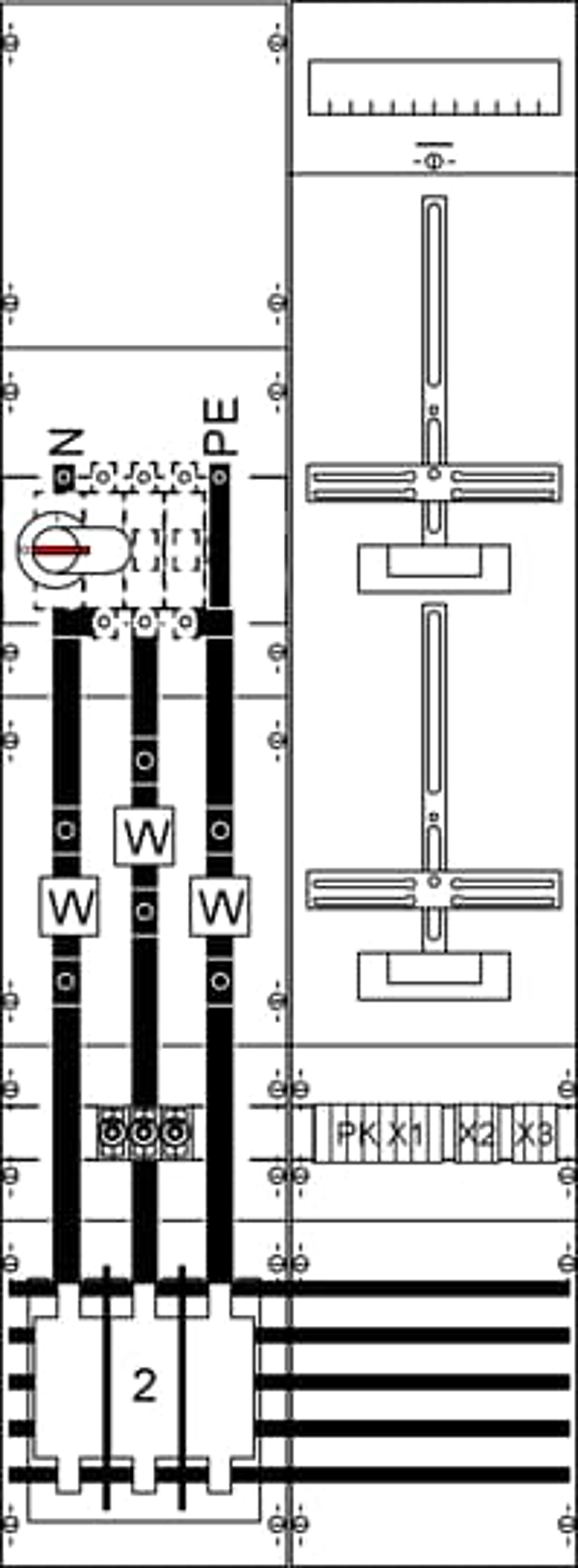

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, voltage path Fuse base element D01/3-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617351306
Weight: 24.44 kg
Length: 1.46 m
Width: 0.50 m
Height: 0.233 m
