ABB 2CPX035072R9999

KA4263H5

KA4263H5 Transformer meterboard OH5

Description

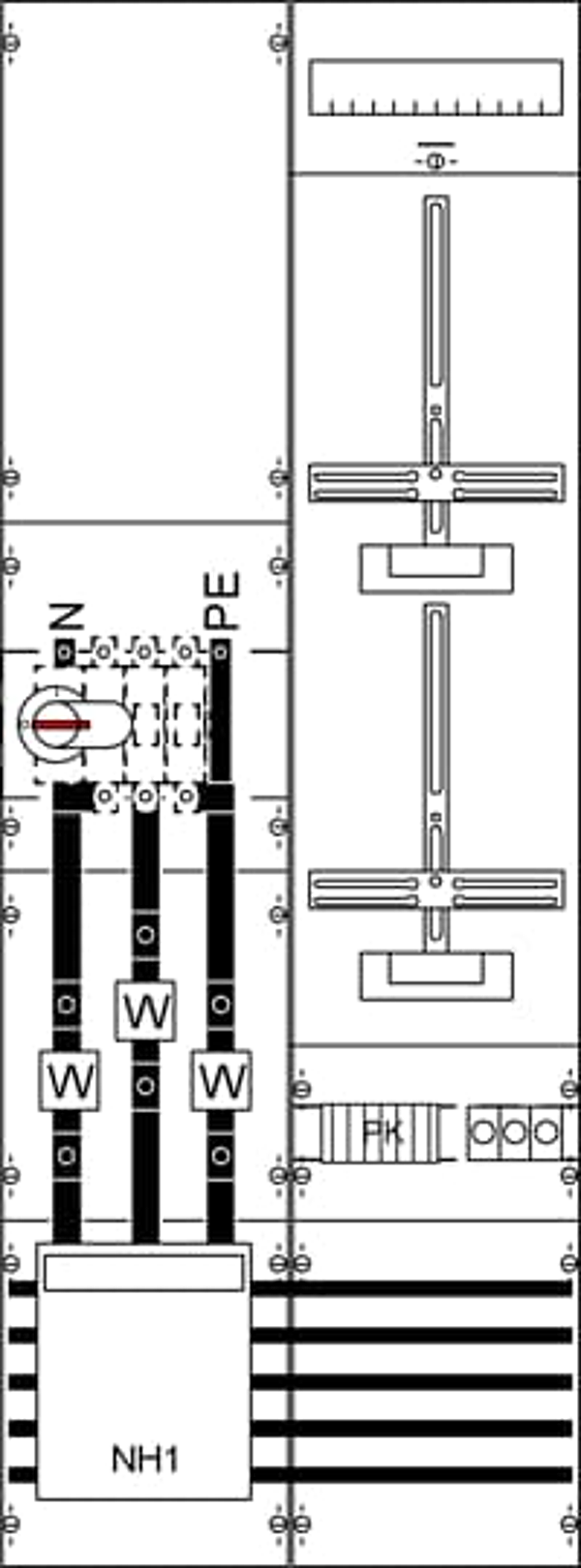

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole with 10A fuse, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 192, covers out of Plastic, Quick sealable connection, RAL 7035
