Article image 2CPX035037R9999

ABB 2CPX035037R9999

KA4264

KA4264 CT Meter Board OH5

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

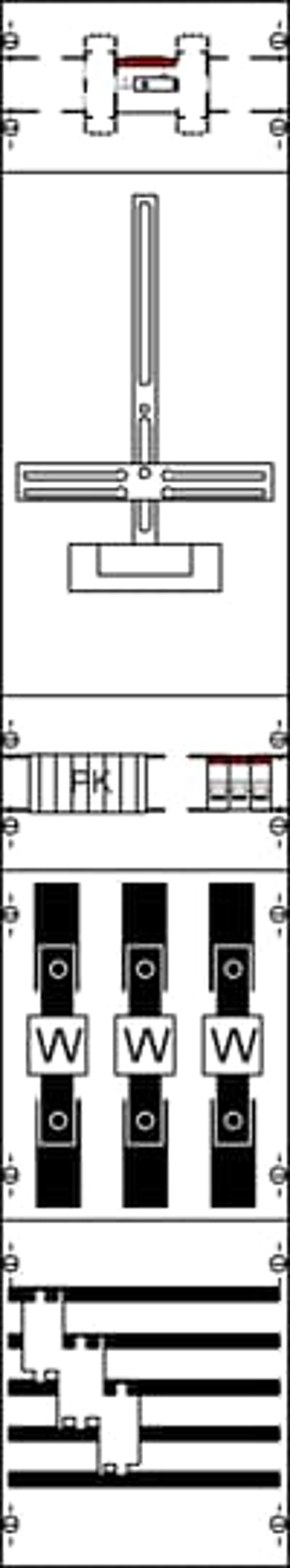

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, rated current 80 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path 3 low voltage path switches Z10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE Connection N+PE 50qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617350378
Weight: 14.04 kg
Length: 1.36 m
Width: 0.25 m
Height: 0.14 m
