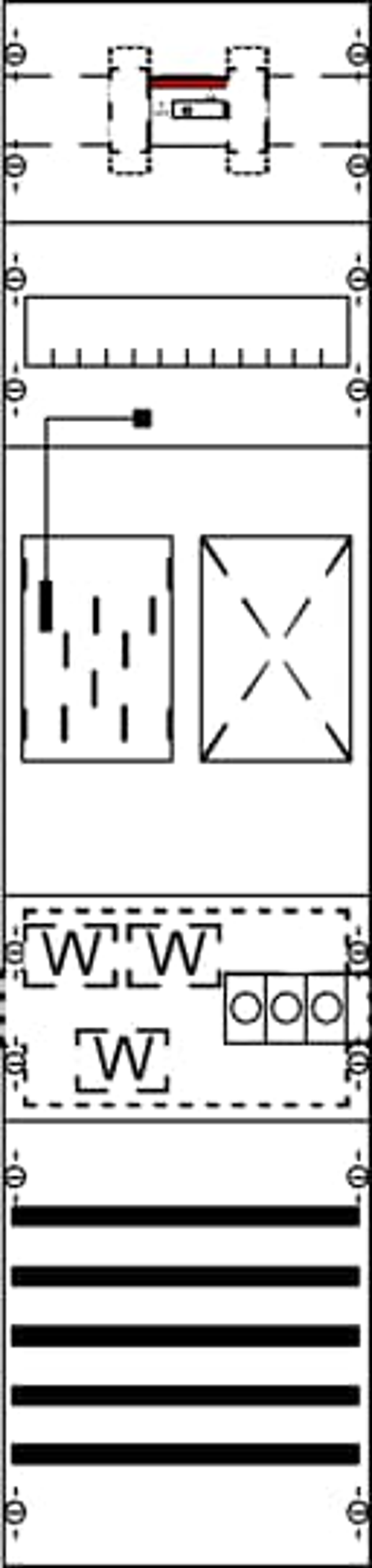

Article image 2CPX035025R9999

ABB 2CPX035025R9999

KA4603

KA4603 Transformer meterboard eHZ

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, rated current 80 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617350255
Weight: 9.23 kg
Length: 1.06 m
Width: 0.25 m
Height: 0.14 m
