ABB 2CPX035020R9999

KA4296

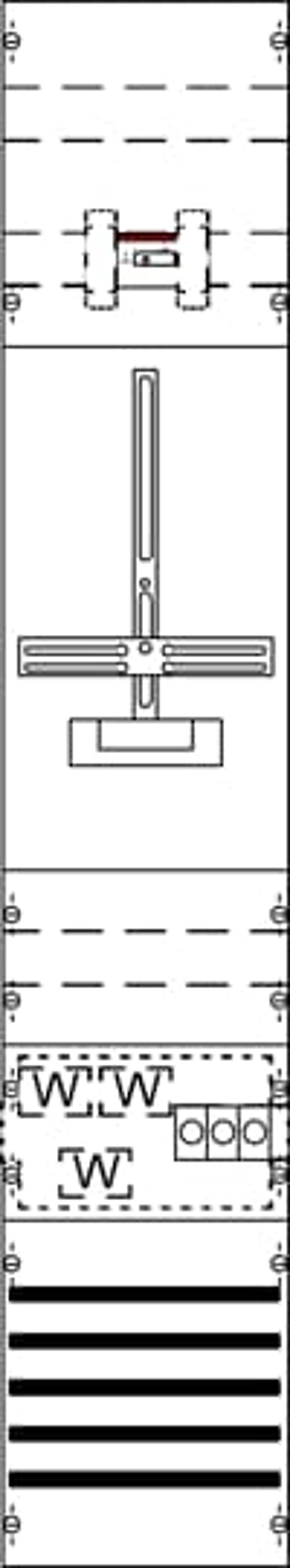

KA4296 Transformer meterboard OH5

Description

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 80 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Room for test terminal, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
