Article image 2CPX035018R9999

ABB 2CPX035018R9999

KA4293

KA4293 Transformer meterboard OH5

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

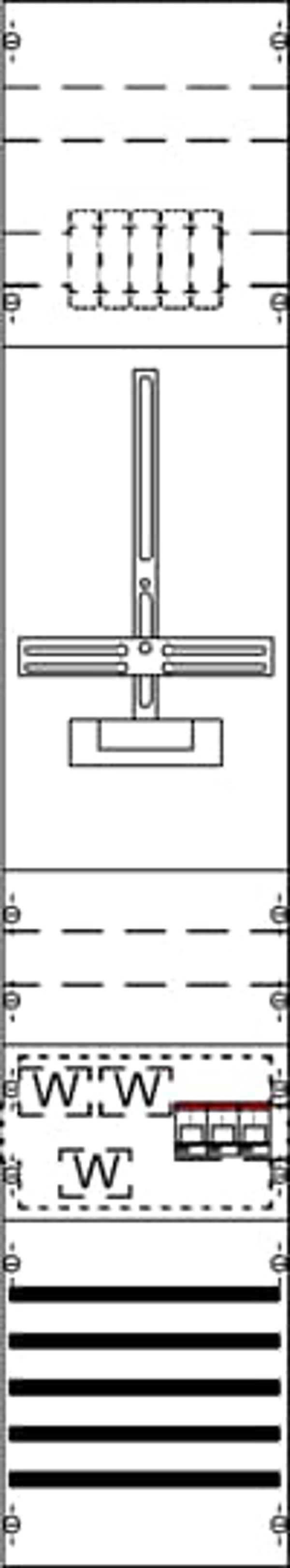

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 80 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Room for test terminal, voltage path 3 low voltage path switches B10/36kA overvoltage path category 4, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, parting point after the current transformer Main terminal 2, outgoing connection 50qmm, primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617350187
Weight: 9.98 kg
Length: 1.36 m
Width: 0.25 m
Height: 0.14 m
