2CPX034229R9999
KA4078
KA4078 Transformerboard OH5

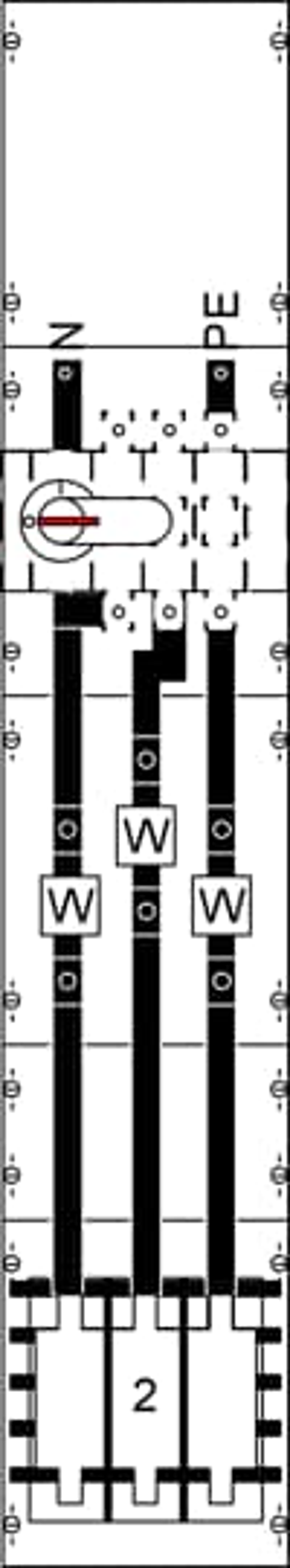

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 355 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring Cu-Busbar 30 x 5 mm, Connection N+PE (M8), Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617342298 |
Weight: | 19.96 kg |
Length: | 1.37 m |
Width: | 0.25 m |
Height: | 0.15 m |
