ABB 2CPX034228R9999

KA4077

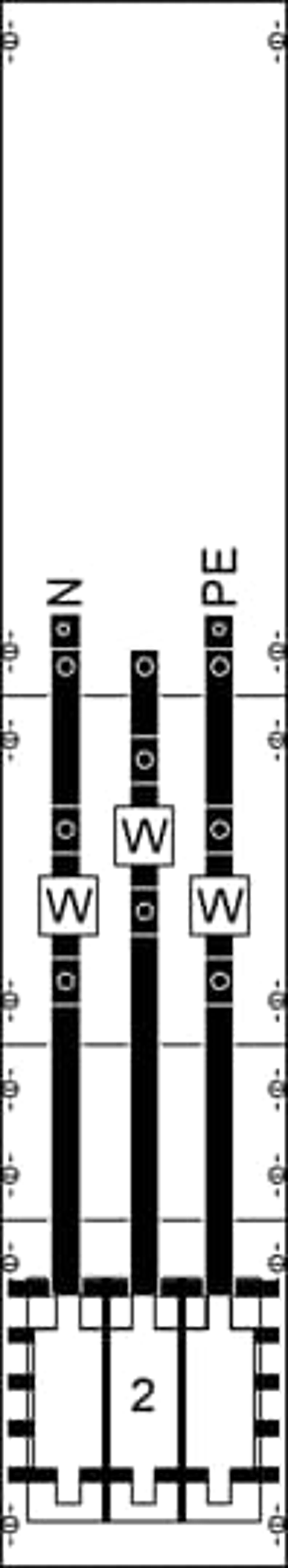

KA4077 Transformerboard OH5

Description

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 355 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point after the current transformer Screw connectors (M10), Connection N+PE (M10), Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
