ABB 2CPX034227R9999

KA4070

KA4070 Transformerboard OH5

Description

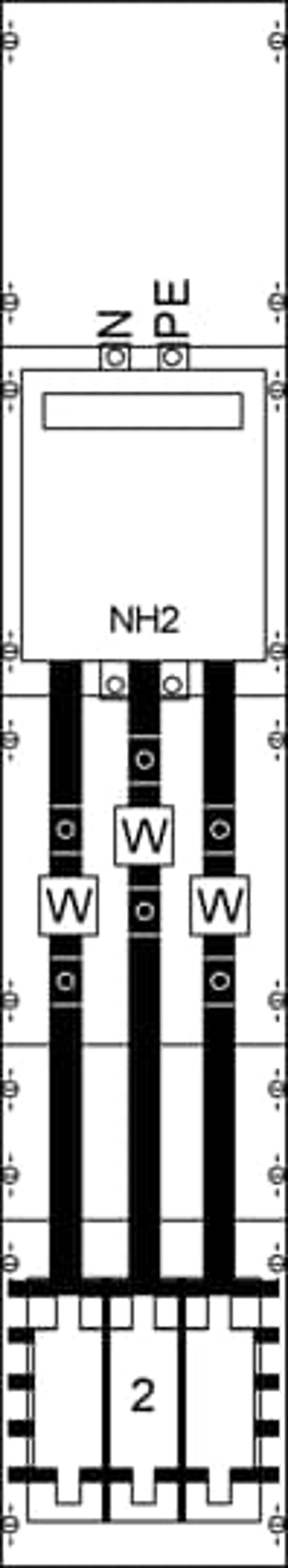

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 355 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer 3 Fuse switch disconnector NH00/400 A (M12), Connection N+PE (M12), Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
