ABB 2CPX034213R9999

KA4065

KA4065 Transformerboard OH3

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

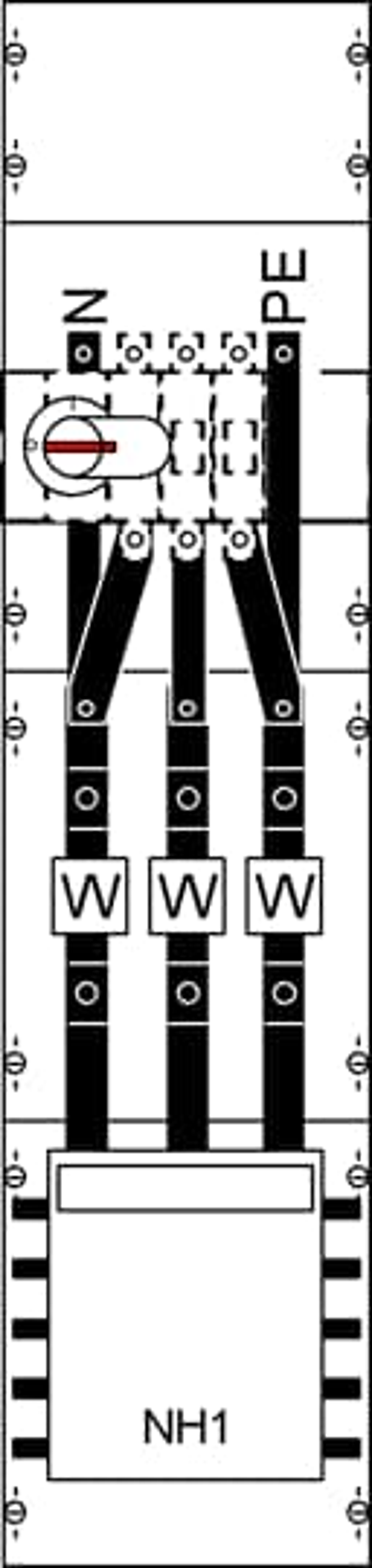

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 250 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer Switch 250 A / 3-pole (M8), Connection N+PE (M8), Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Ratchet unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617342137
Weight: 13.71 kg
Length: 1.06 m
Width: 0.25 m
Height: 0.14 m
