Article image 2CPX034212R9999

ABB 2CPX034212R9999

KA4064

KA4064 Transformerboard OH3

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

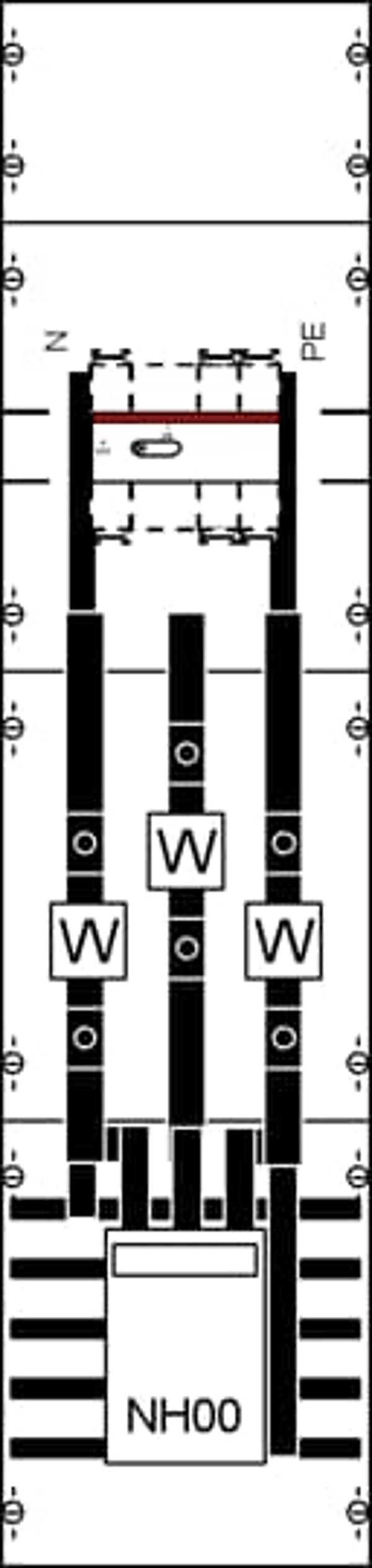

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 160 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Switch 160 A / 3-pole (10-70qmm), Connection N+PE (M8), Ratchet unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617342120
Weight: 11.85 kg
Length: 1.06 m
Width: 0.25 m
Height: 0.14 m
