2CPX034211R9999
KA4062
KA4062 Transformerboard OH3

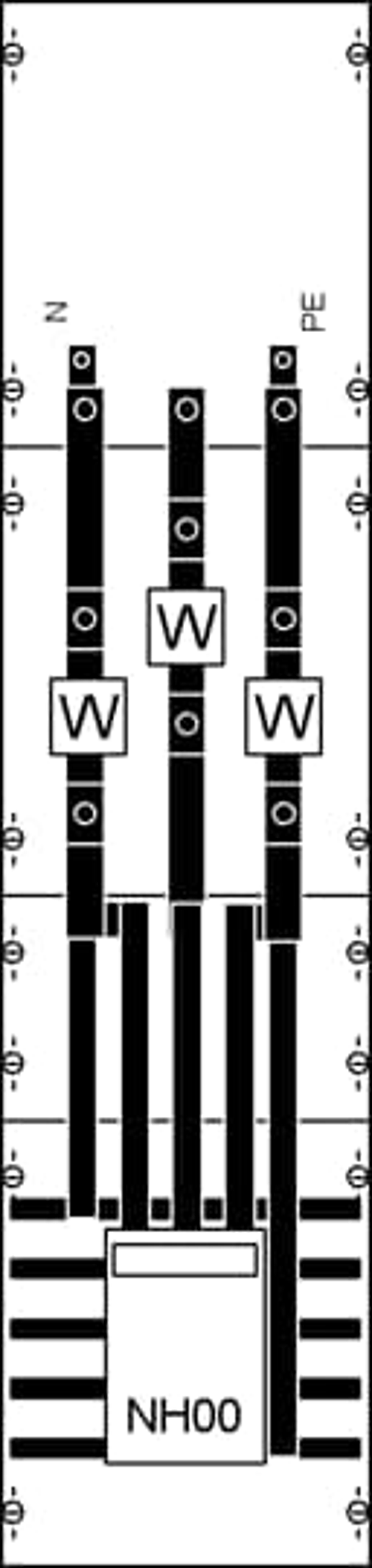

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 160 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Screw connectors (M8), Connection N+PE (M8), Ratchet unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617342113 |
Weight: | 10.75 kg |
Length: | 1.06 m |
Width: | 0.25 m |
Height: | 0.14 m |
