Article image 2CPX034208R9999

ABB 2CPX034208R9999

KA4058

KA4058 Transformerboard OH5

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

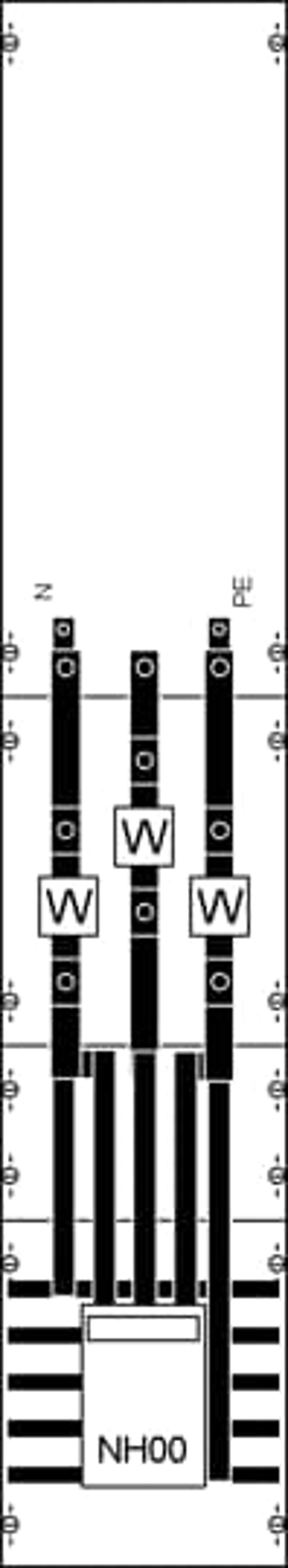

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 160 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Screw connectors (M8), Connection N+PE (M8), Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617342083
Weight: 11.51 kg
Length: 1.36 m
Width: 0.25 m
Height: 0.14 m
