2CPX034205R9999
KA4502

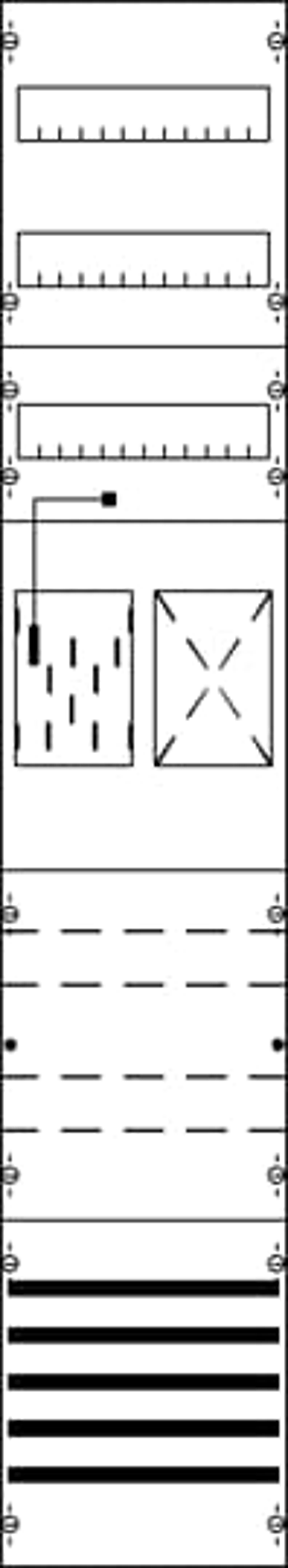

KA4502 Meterboard eHZ for CT OH5
Meter panel, fully assembled module, with BKE-I, for the internal use, applicable standards: EN 61439-1, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Room for test terminal, Note: E DIN VDE 0603-2-2, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617342052 |
Weight: | 7.65 kg |
Length: | 1.36 m |
Width: | 0.25 m |
Height: | 0.14 m |
