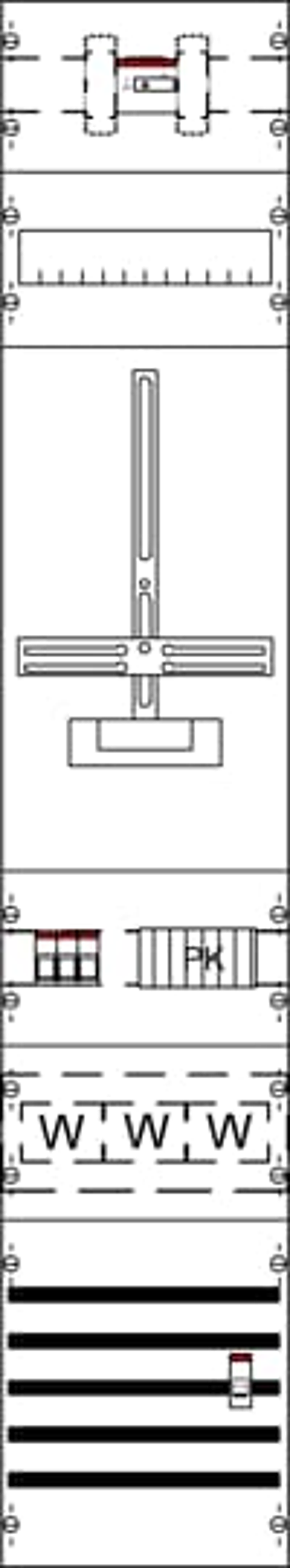

Article image 2CPX034180R9999

ABB 2CPX034180R9999

KA4273

KA4273 CT Meter Board OH5

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 80 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path Fuse-disconnector switch, 3 pole with fuses 10,3 x 38mm 2A, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 95qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617341802
Weight: 10.54 kg
Length: 1.36 m
Width: 0.25 m
Height: 0.14 m
