Article image 2CPX034036R9999

ABB 2CPX034036R9999

KA4317

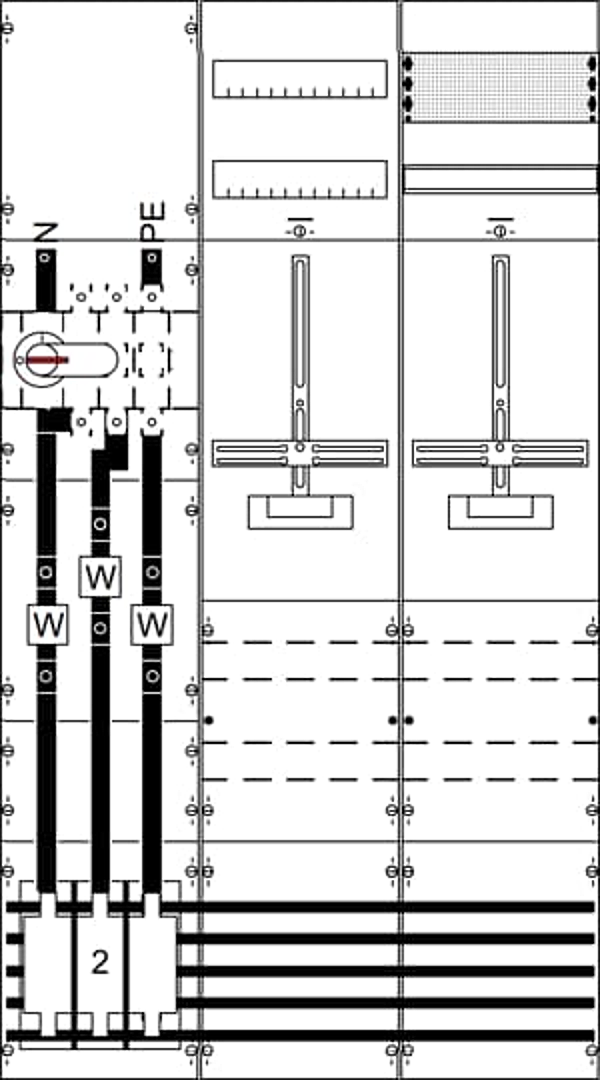

KA4317 Transformer meter board

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 355 A, dimensions in mm (H x W x D): 1350 x 750 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Room for test terminal, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Switch 400 A / 3-pole (M10), Connection N+PE (M8), Ratchet unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617340362
Weight: 32.94 kg
Length: 1.36 m
Width: 0.75 m
Height: 0.14 m
