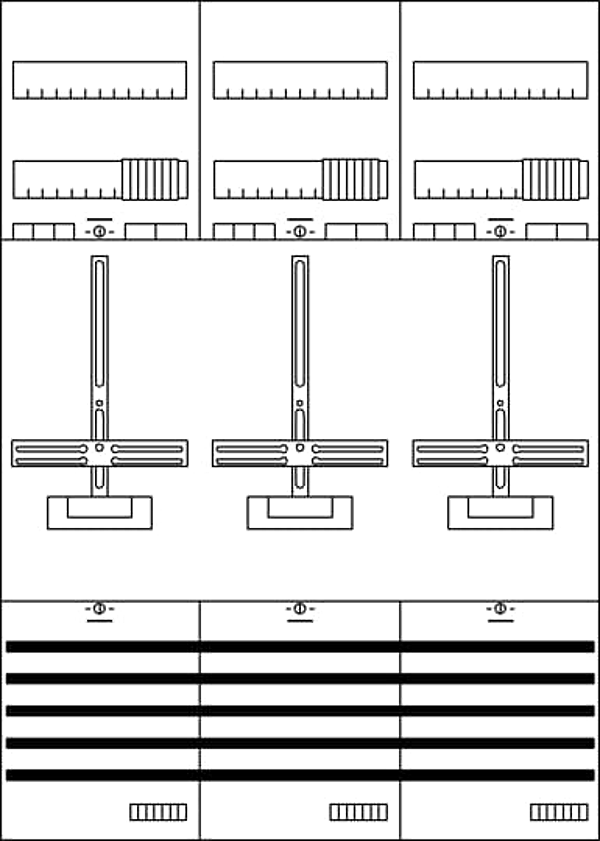

Article image 2CPX033982R9999

ABB 2CPX033982R9999

KA683

KA683 Meter Board Compl. 7R

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, rated current 63 A, dimensions in mm (H x W x D): 1050 x 750 x 160, Metering module pre-wired, Earthing system TN-S, also suitable for TT-System, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, Terminal for control wiring 7-pole quick connection, net side compartment, SG space: with busbar, with Jumper bar connection cable, system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 3, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, 90 degree press and turn closure, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617339823
Weight: 17.40 kg
Length: 1.06 m
Width: 0.75 m
Height: 0.14 m
