ABB 2CPX033815R9999

KA4211

KA4211 Transformer Meterboard H5/W2

Description

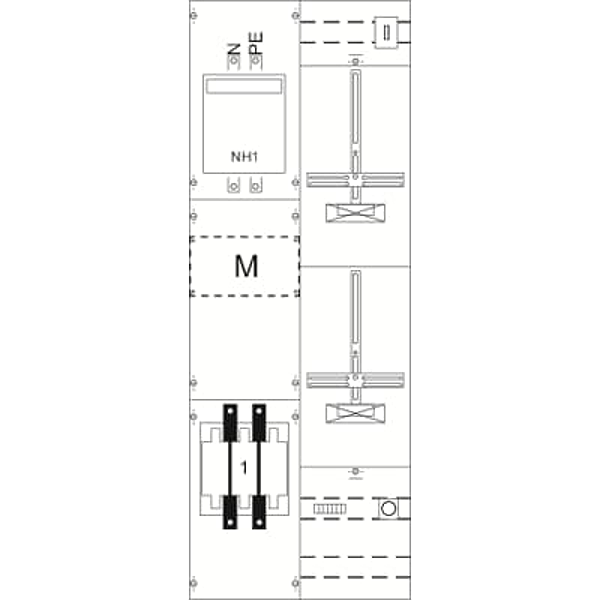

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, parting point before the current transformer Fuse base element NH1/250A (M10), parting point after the current transformer Fuse switch disconnector NH1/250A, primary wiring 95 qmm, PE+N-busbar incomer and outgoing (screw M8), Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
