ABB 2CPX033811R9999

KA4215

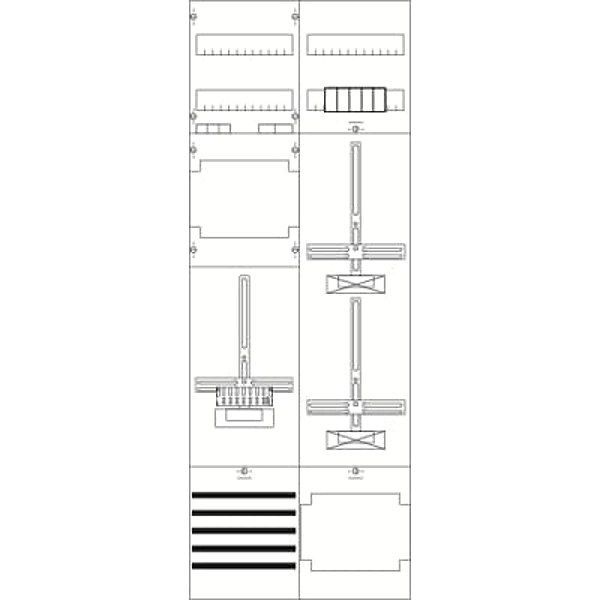

KA4215 Transformer Meterboard H5/W2

Description

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 100 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Quick terminal for metering, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Room for test terminal, parting point before the current transformer for SH-swtch with ABB S700, parting point after the current transformer Main branch terminal 35qmm, primary wiring L1-L3 NSGAFÖU 25qmm, N+PE H07V-K 25qmm, Main terminal, 5 pole 35qmm, Note: Secundary wiringset to be used on site, SH-mainswitch and busbar terminals, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
