ABB 2CPX033810R9999

KA4072

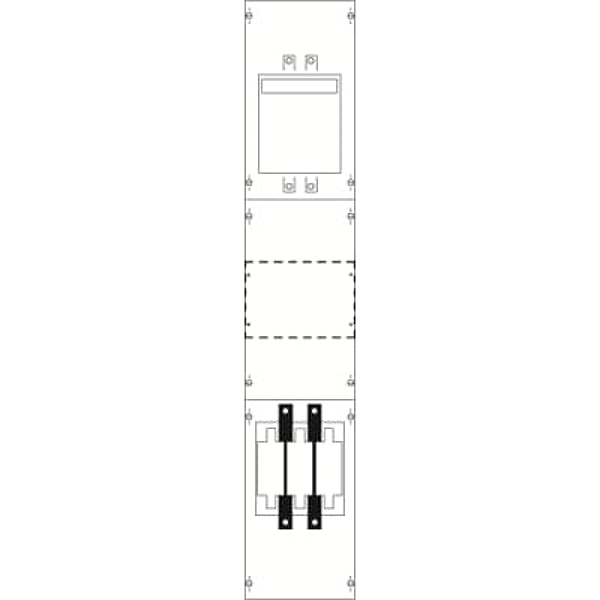

KA4072 Transformerboard

Description

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 250 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH1/250A (M10), parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 95 qmm, N-terminal up to 5 x 10 qmm, PE+N-busbar incomer and outgoing (screw M8), Note: for installation in A-cabinet, for installation in other cabinets extra parts to be required, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
