2CPX033808R9999
KA4043

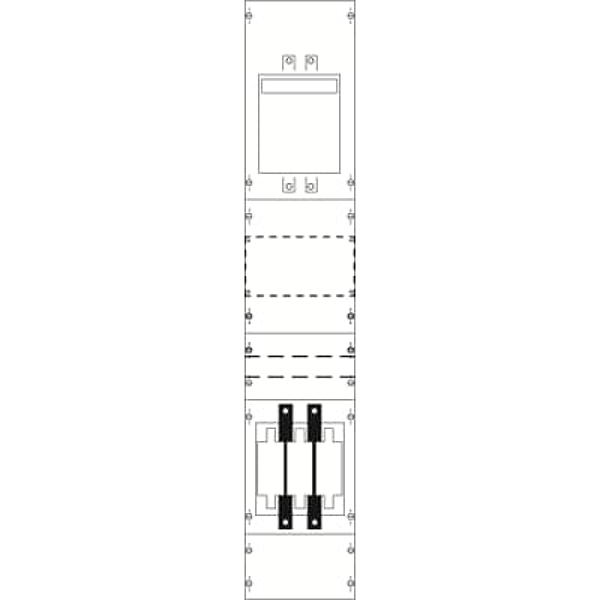

KA4043 Transformerboard H5
CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 250 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, parting point before the current transformer Fuse base element NH1/250A (M10), parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, PE+N Cu 30 x 5 mm, PE+N-busbar incomer and outgoing (screw M8), Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617338086 |
Weight: | 15.32 kg |
Length: | 1.46 m |
Width: | 0.25 m |
Height: | 0.233 m |
