ABB 2CPX033804R9999

KA4208

KA4208 current transformer Cabine

Description

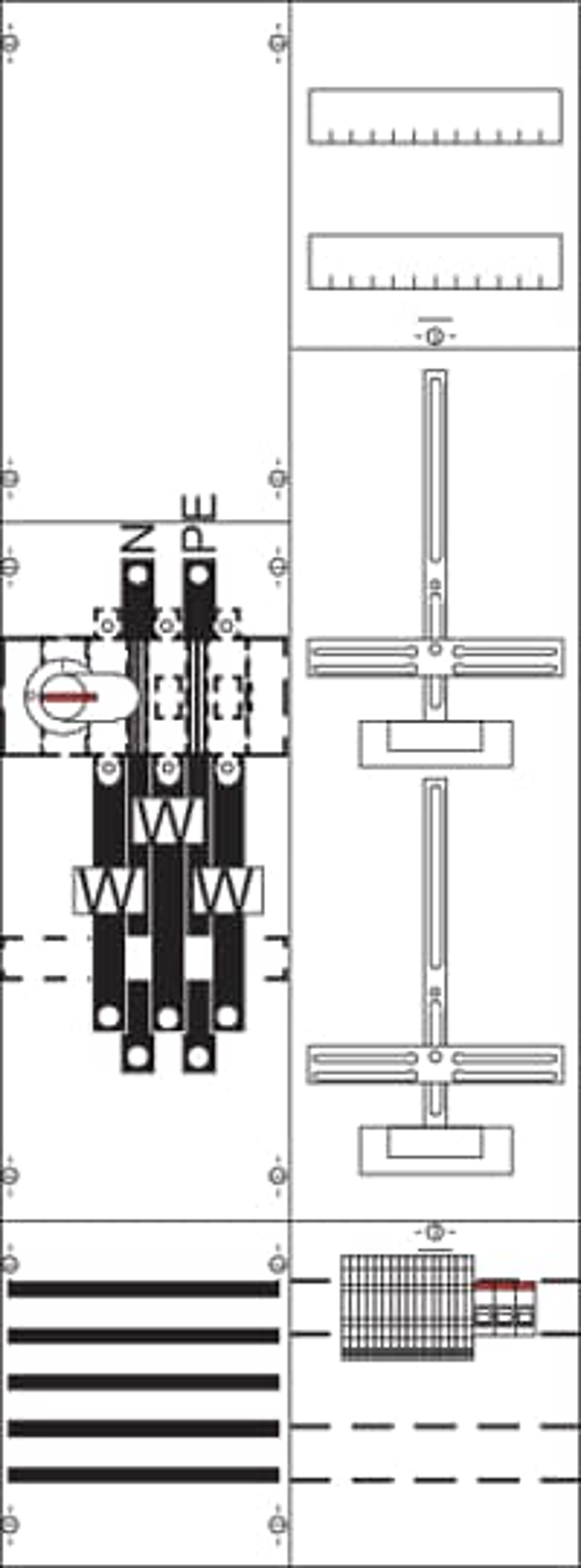

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
