ABB 2CPX033628R9999

1ZF523M1

1ZF523M1 Meterboard OH5 5

Description

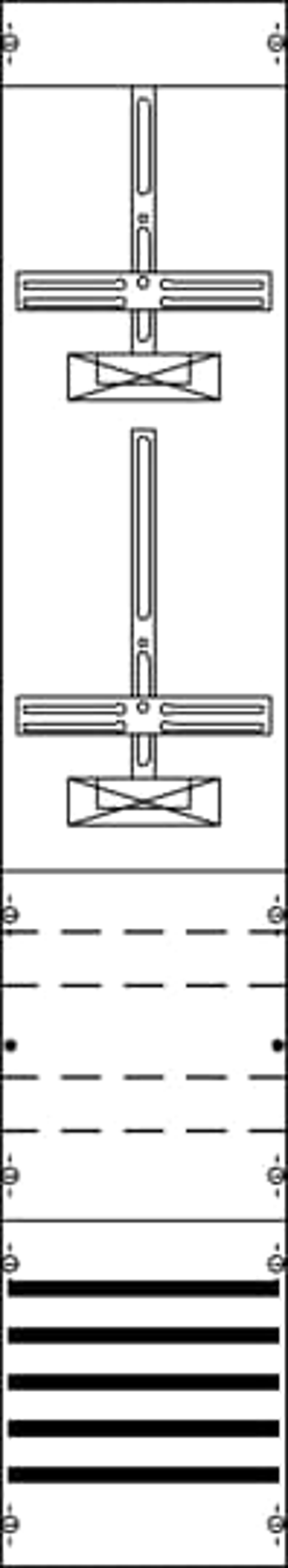

Meter panel, suitable for series: U and A and TG...SZ, empty board, with Metering cross, for the internal use, dimensions in mm (H x W x D): 1350 x 250 x 160, 2-floor, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, net side compartment, meter space: with busbar, busbar system Cu busbars 12 x 5 mm 5-pole, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
