2CPX033478R9999
KA473
KA473 Current Transformer Cabine

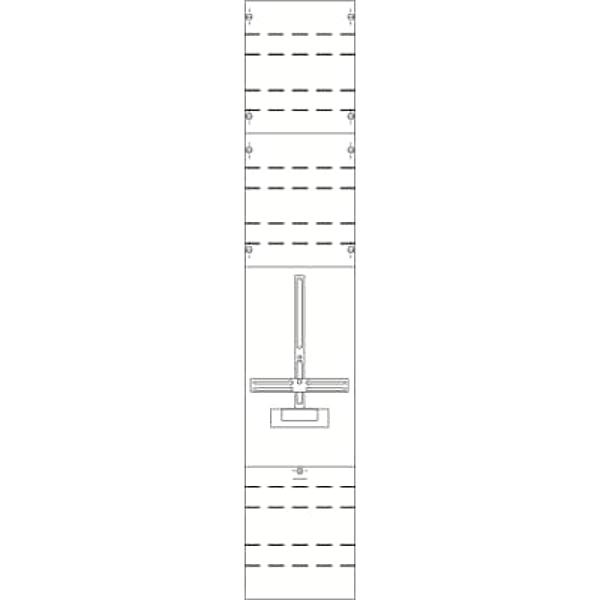

Meter panel, empty board, with Metering cross, for the internal use, applicable standards: EN 61439-1, rated current 63 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Room for test terminal, Note: for installation in A-cabinet, for installation in other cabinets extra parts to be required, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617334781 |
Weight: | 5.00 kg |
Length: | 1.36 m |
Width: | 0.25 m |
Height: | 0.14 m |
