ABB 2CPX033414R9999

KA4041

KA4041 Transformer Meterboard

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

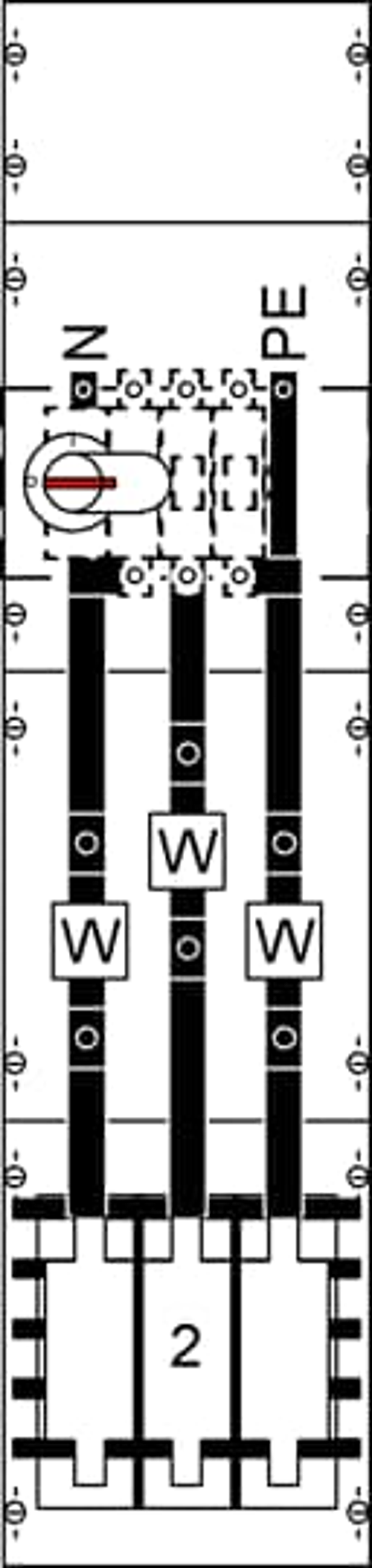

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 250 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Incomer to be connected to busbar connection, Ratchet unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617334149
Weight: 16.59 kg
Length: 1.37 m
Width: 0.25 m
Height: 0.15 m
