ABB 2CPX033413R9999

KA4040

KA4040 Transformer Meterboard

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

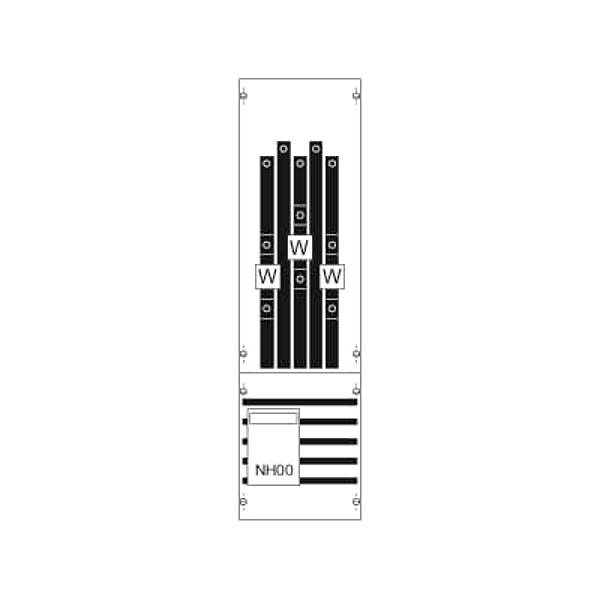

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 160 A, dimensions in mm (H x W x D): 900 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Screw connectors (M10), primary wiring L1-L3 70 qmm, N+PE 70 qmm, Connection N+PE (M10), Note: may be required busbar terminals, connection set for voltage path and/or current , Ratchet unit 6 GU, Overall height 2, panel width 1, Space units 72, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617334132
Weight: 10.58 kg
Length: 1.06 m
Width: 0.25 m
Height: 0.14 m
