ABB 2CPX033409R9999

KA4036

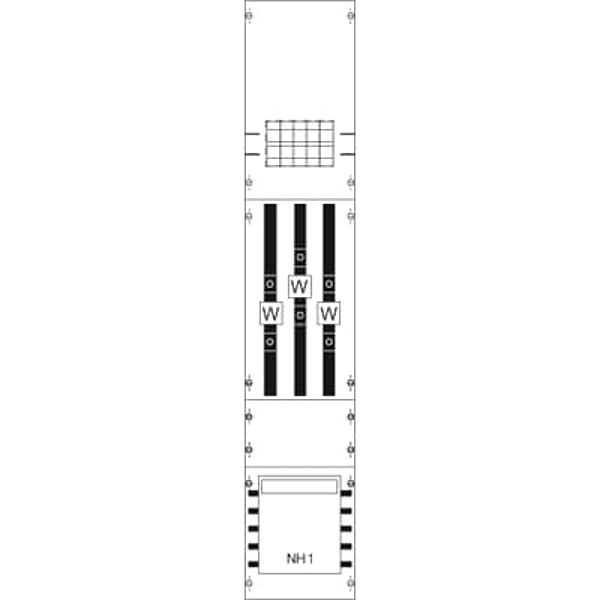

KA4036 Transformer Meterboard

Description

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 250 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer Main terminal 1, outgoing connection 150qmm, primary wiring L1-L3 120 qmm, N+PE 120 qmm, Outgoing terminal 5-pole up to 95 qmm, N+PE Connection N+PE 150qmm, Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
