ABB 2CPX033407R9999

KA4034

KA4034 Transformer Meterboard

Description

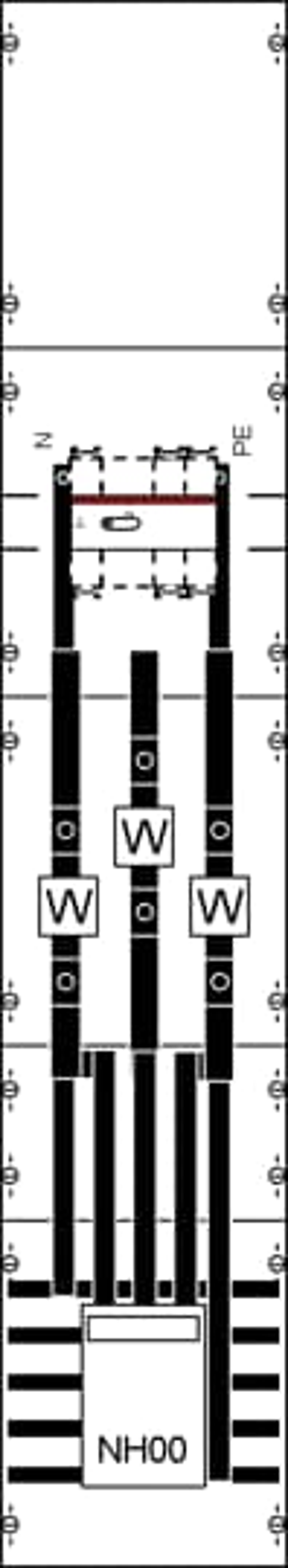

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 160 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Switch 160 A / 3-pole (10-70qmm), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
