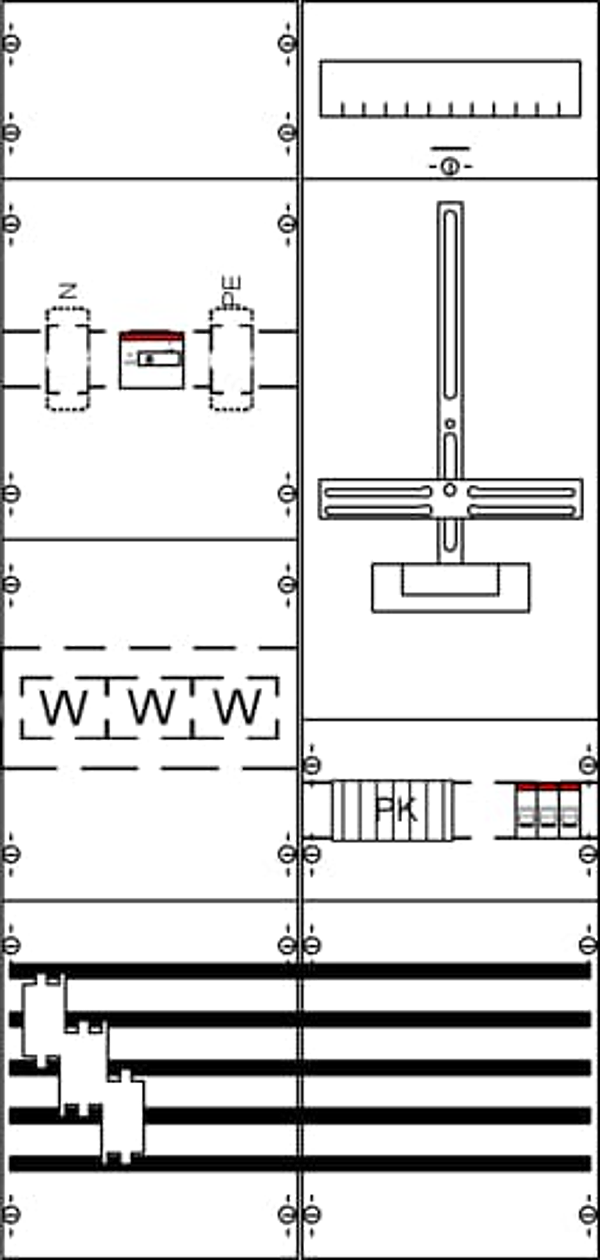

Article image 2CPX033272R9999

ABB 2CPX033272R9999

KA4313

KA4313 CT Meter Board OH3

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 125 A, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617332725
Weight: 14.63 kg
Length: 1.06 m
Width: 0.50 m
Height: 0.14 m
